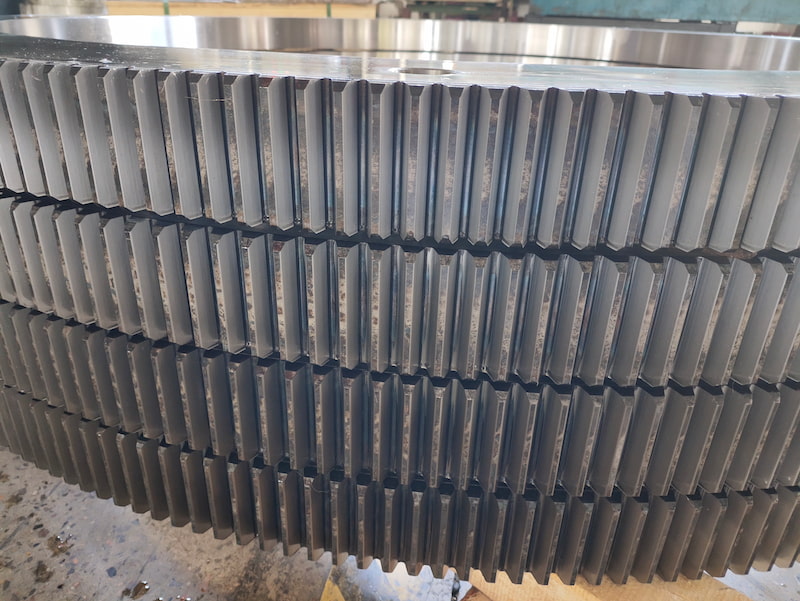

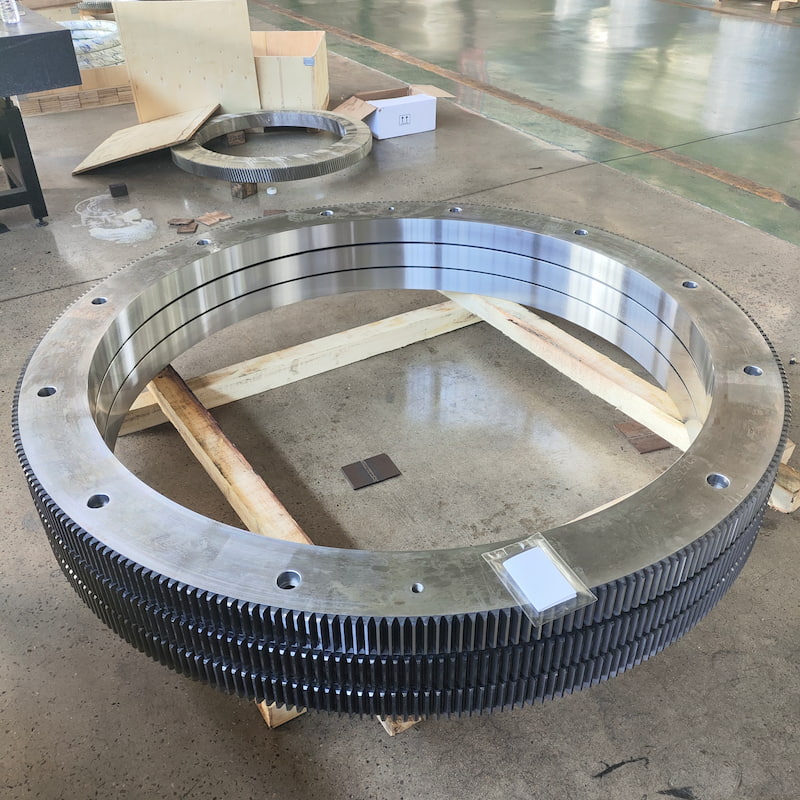

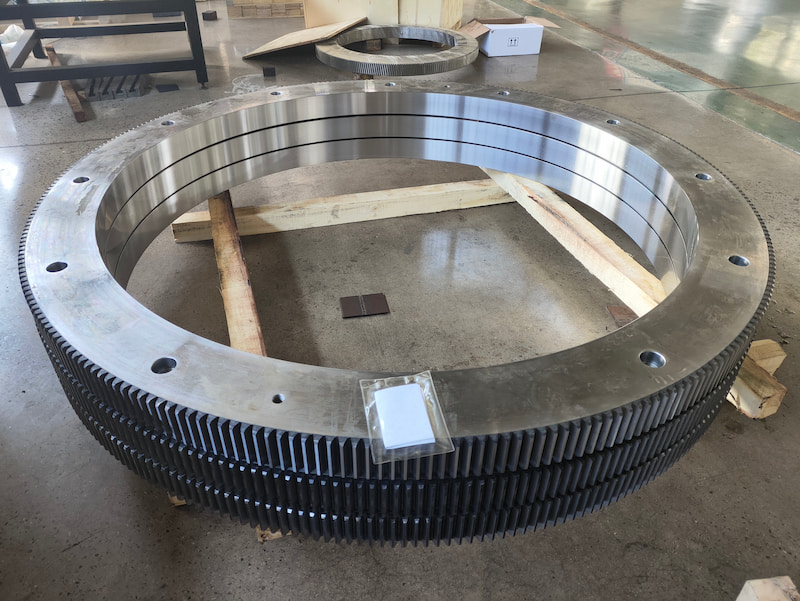

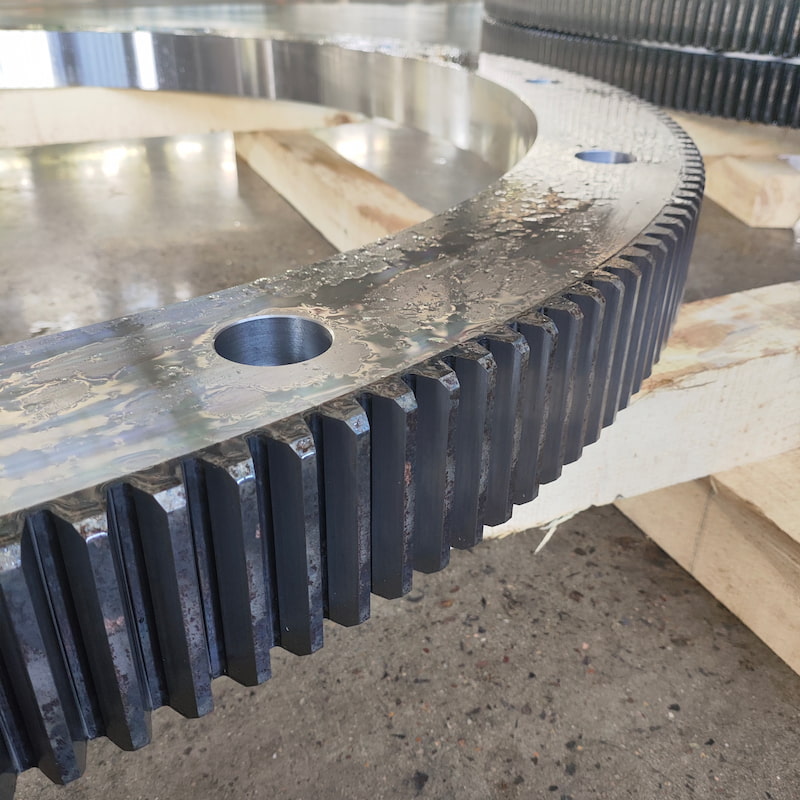

Precision Quenched External Ring Gear for Automation Equipment

Precision ring gear

This product is a hign-precision spur external ring gear, specially designed for demanding industrial transmission applications. Forged from premium alloy steel, it undergoes precision gear quenching and grinding, ensuring exceptional hardness and wear resistance on the tooth flanks. Besides, the dual assurance of gear grinding and end-face precision turning eliminates transmission shocks, achieving ultra-low noise operation.

Features & performance advantages

Adopted high-quality alloy structural steel, ensuring a balance of strength and toughness;

Precision gear quenching and grinding, enhancing meshing smoothness and reducing noise;

Extended service life, optimized tooth root transition curve design and smooth surface quality extending fatigue life.

Specification

Our showcase

Why Choose Us

High load capacity, wear resistance & long service life

Strict dimensional tolerance, smooth rotation

Customization drawings / OEM / ODM available

Direct factory price, stable delivery

Complete inspection & test report before shipment

Suitable for heavy-duty engineering & harsh working environment

After Sales Service

Tailored product according to your drawings or samples

Professional technical support anytime

Strict quality inspection & full set of shipping documents

Fast delivery & safe packaging (plywood pallet/case)

One-year quality warranty

FAQ

1.  Why must precision ring gears be ground after quenching?

Gears inevitably undergo heat treatment deformation during carburizing and quenching. Gear grinding precisely corrects this deformation, restores the standard involute tooth profile, and achieves excellent tooth flank surface roughness. This not only improves transmission accuracy but also effectively reduces noise and vibration during high-speed operation.

2. Do you offer non-standard customization services?

Yes, we support comprehensive non-standard customization. This includes special modules, number of teeth, helix angles, and specific case-hardening depth requirements. Please provide your detailed drawings or technical parameters, and our engineering team will offer a professional manufacturing solution.

*For technical consultation or custom quotations, please provide gear parameters (module, number of teeth, face width, accuracy requirements, operating conditions, etc.). Our engineering team will deliver a professional solution tailored to your specific needs.
