Customized Ring Gear for Machine Tools

Customized ring gear

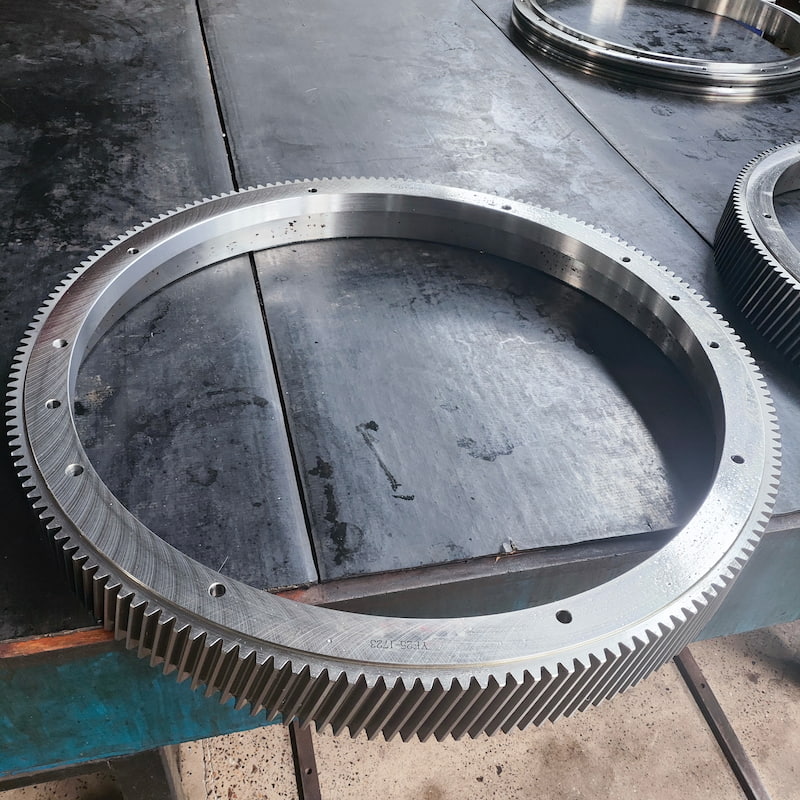

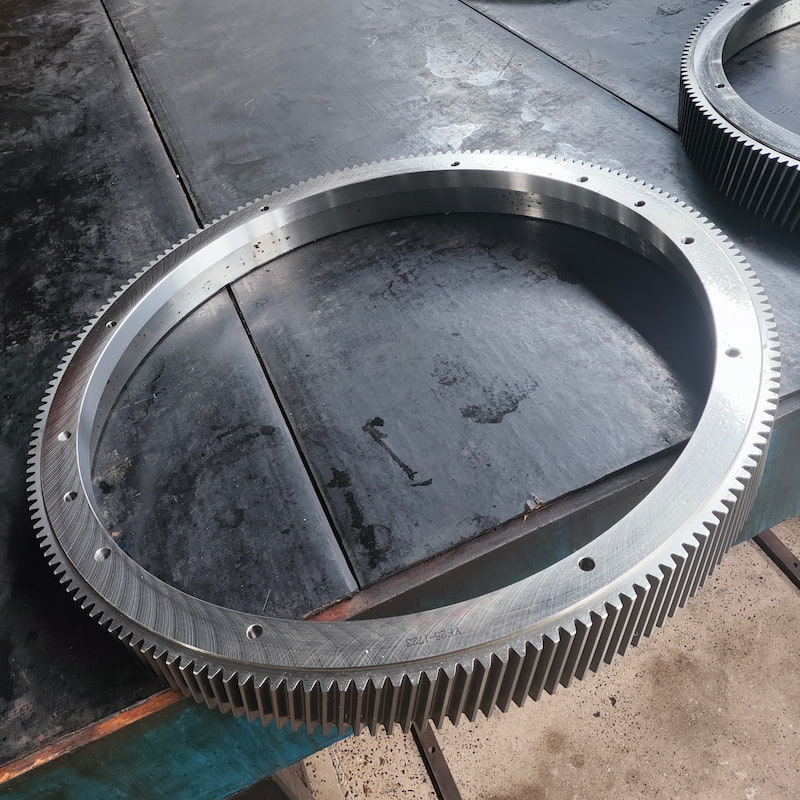

External gear design facilitates meshing with pinions for high-torque transmission; teeth are precisely machined via shaping with minimal pitch error for smooth meshing and low noise; thick-walled ring structure offers strong deformation resistance, suitable for heavy-load, high-precision indexing applications. Compated to spur gears, helical gear design engages with a gradual entry/exit of contact lines along the helix angle, which ensures higher contact ratio, greatly lowering vibration and noise.

Features & performance advantages

Adopted high-quality alloy structural steel, ensuring a balance of strength and toughness;

Reduced vibration, quieter operation, longer lifespan via helical teeth;

Simple structure, easy installation with precision bolt holes.

Specification

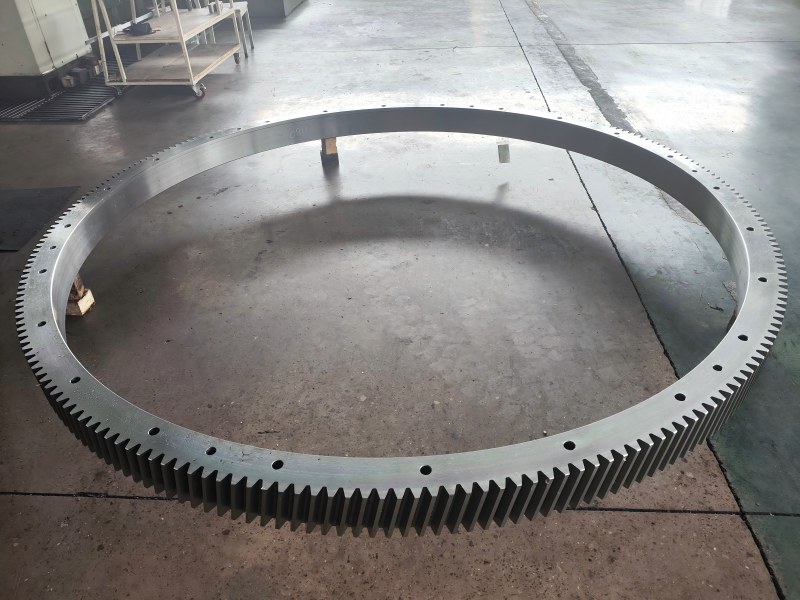

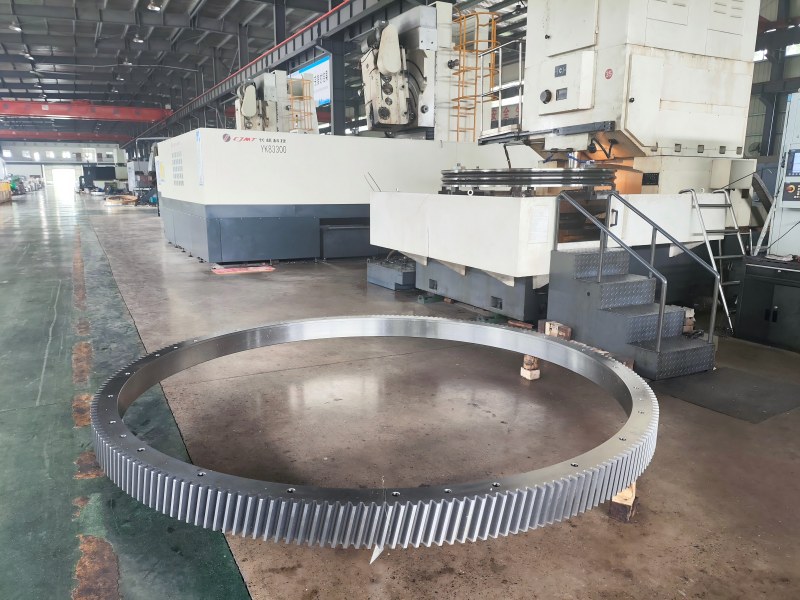

Our showcase

Why Choose Us

High load capacity, wear resistance & long service life

Strict dimensional tolerance, smooth rotation

Customization drawings / OEM / ODM available

Direct factory price, stable delivery

Complete inspection & test report before shipment

Suitable for heavy-duty engineering & harsh working environment

After Sales Service

Tailored product according to your drawings or samples

Professional technical support anytime

Strict quality inspection & full set of shipping documents

Fast delivery & safe packaging (plywood pallet/case)

One-year quality warranty

FAQ

1.  Does the unquenched gear tooth surface affect the service lifeof ring gears?

The unquenched tooth surface is a "machining allowance" reserved for the customer, not a defect. Because our client will use it directly, it is suggested to use a lubrication system and control the load to avoid high-speed and heavy-load working conditions. We can provide heat treatment process matches the precision requirements of the machine tool.

2. What should be paid attention to during installation?

During installation, it is necessary to ensure the concentricity and flatness between the gear ring and the base; we recommend using special tooling for calibration. Bolts should be tightened step by step in a diagonal sequence, and the pre-tightening force must meet design requirements to avoid deformation or meshing noise cause by uneven force.

*For technical consultation or custom quotations, please provide gear parameters (module, number of teeth, face width, accuracy requirements, operating conditions, etc.). Our engineering team will deliver a professional solution tailored to your specific needs.
