To the untrained eye, a slewing ring might look like just a massive steel circle. But as a manufacturer with nearly 20 years of history, we see it as the high-precision "heart" of a machine. Since our founding in 2007, we have been perfecting our craft. Today, we are opening our factory doors in Hefei to show you the journey of a slewing ring from raw steel to global shipment.

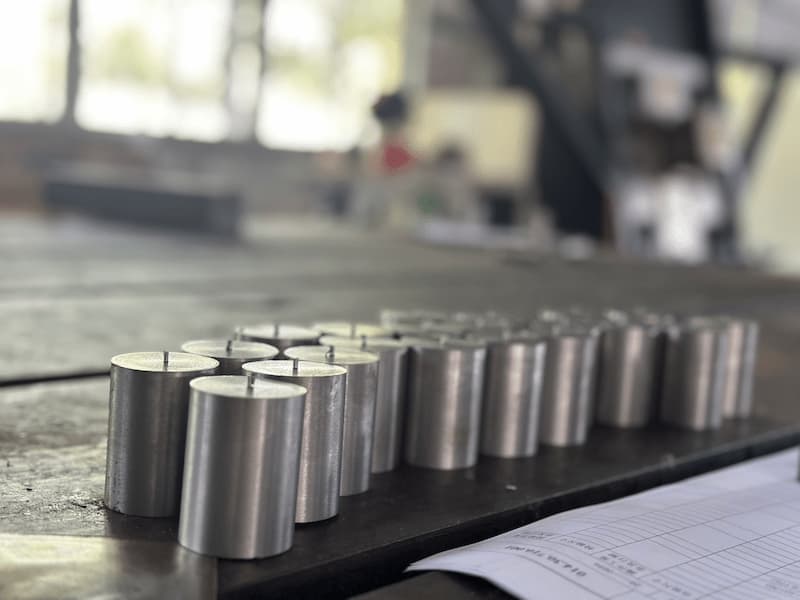

Material Selection: The Foundation of Strength
Every project starts with choosing the right steel. We select materials based on the specific environment where the machine will work, such as wind turbines or heavy-duty cranes.
50Mn: A high-performance choice for most general industrial machinery.
42CrMo: A tougher alloy steel for heavy loads and high-impact environments.
Forging and Rough Machining
The process begins with high-temperature forging to create the ring. Our CNC equipment then performs rough machining to remove excess metal and establish the basic dimensions. Precision starts here—every millimeter of extra material is carefully calculated.

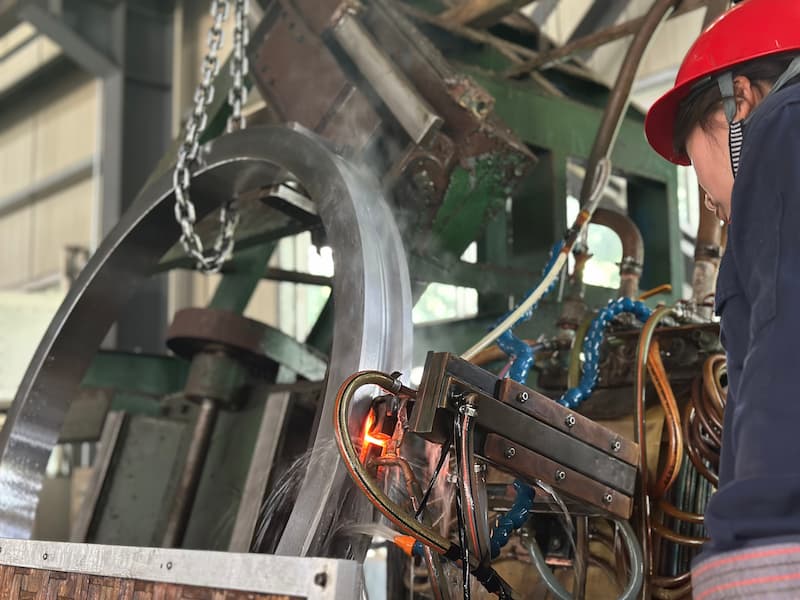

Heat Treatment: Giving the Bearing its "Soul"
This is the most critical step for durability. We use induction quenching to ensure the raceway reaches a hardness of HRC 53 ± 3. This hardened surface ensures the bearing can withstand tens of tons of pressure without deforming or developing pits.
Precision Grinding: The Line Between Average and Exceptional
This is our proudest stage. We recently upgraded our facility with a brand-new 3-meter large-scale high-precision grinder. Why does grinding matter? It determines the "smoothness" of the rotation. Through fine grinding, we eliminate tiny errors to achieve a "Zero Backlash" state. This ensures the bearing moves without any hesitation or shaking during operation.

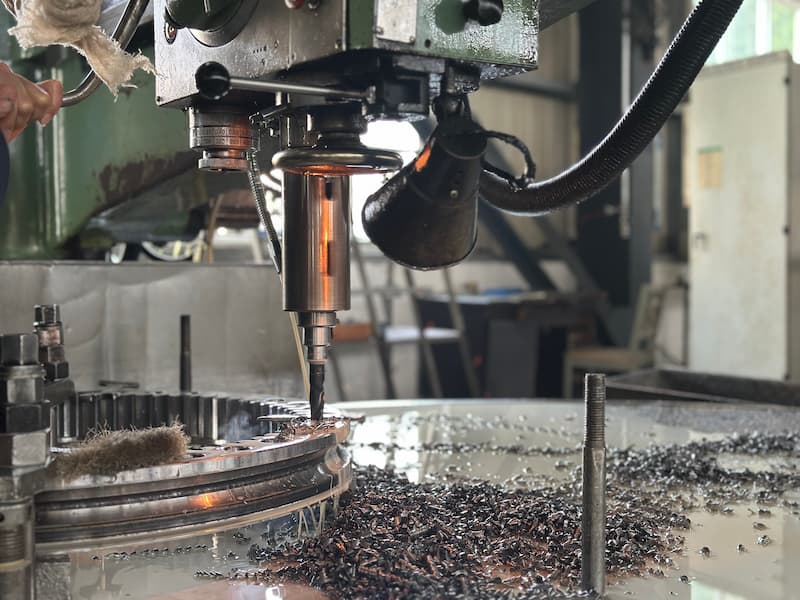

Drilling and Assembly
Once the installation holes are drilled, we move to the assembly area. Our experienced technicians carefully place the balls or rollers into the raceway. During this stage, we apply the correct Preload to ensure every component fits perfectly with no unnecessary "play" or movement.
Final Inspection and Packaging
At Yuanfeng, every single product—even a single order—undergoes a 100% rigorous inspection. Finally, the bearings receive a professional anti-rust treatment and are packed into reinforced, export-grade wooden cases. As we see these crates lined up for delivery, we know they are ready to support massive machines worldwide.
A Commitment to Quality
Manufacturing a slewing ring is not just about the machinery; it is about nearly two decades of experience and the obsession with every micron of accuracy.
Whether you need a large batch or a single custom solution, our respect for quality remains the same.
Ready to see how our precision can support your next project? Contact us at our Hefei factory today.
